Product Description

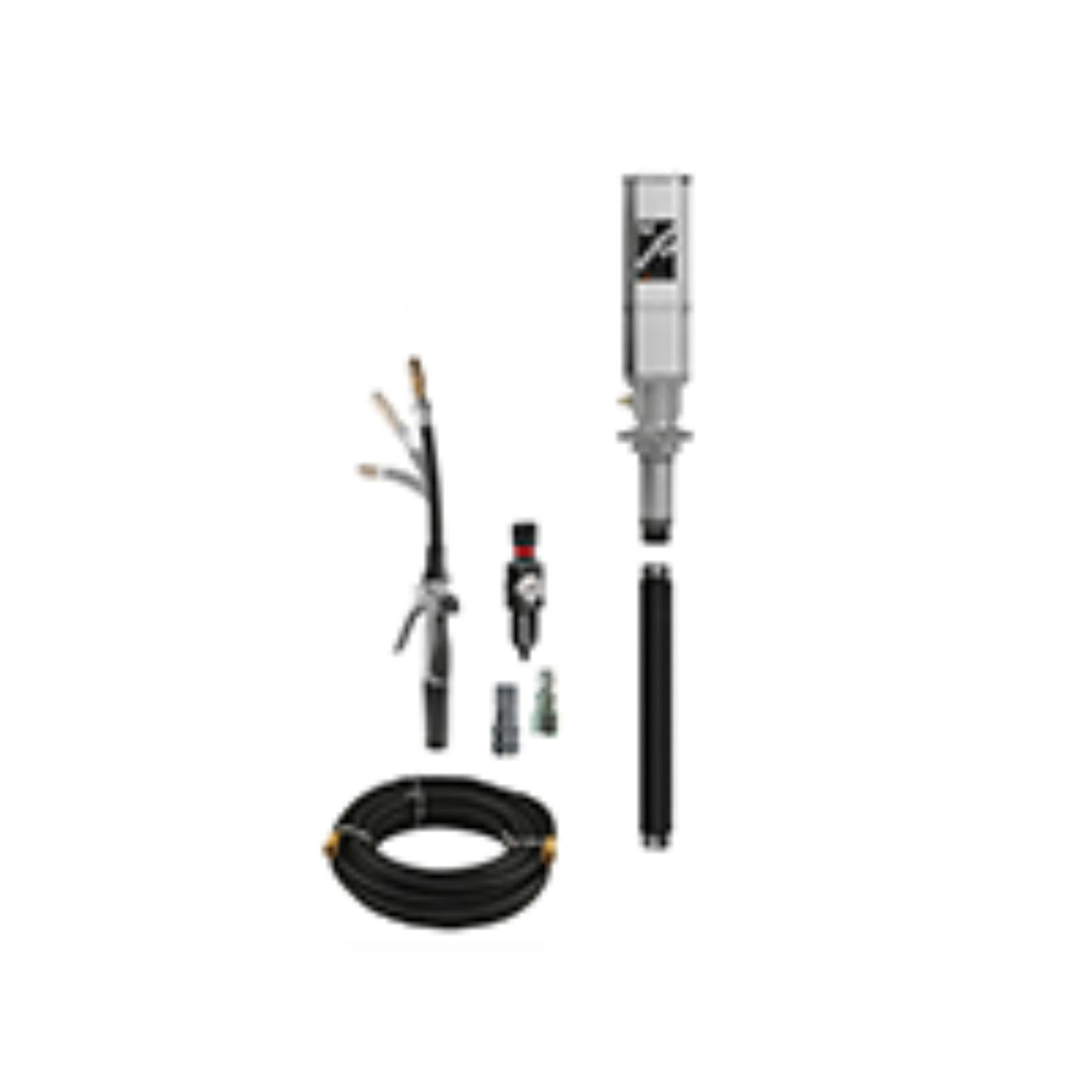

Panther HD 5:1 - 16Gal and 55Gal metered and non-metered. 1131-064, 1131-063, 1131-066, 1131-065.
Note: Pump packages include all hoses and adapters required for connecting an oil pump to the air supply, and oil dispense line.
The 5:1 ratio Panther® pump is suitable for simultaneous fluid distribution of up to four dispense points, or for pumping to distances of up to 750 feet. Maximum simultaneous dispense points @ 1.5 gal/m (5.7 l/m) per dispense point. Note: pumping distance and pipe diameter will effect dispensing performance.
The Panther's air motor features a precision air reversing valve mechanism with dual valve ports for improved high speed breathing. It also contains a positive trip detent spool mechanism that eliminates stalling (blowing air) when the pump is caught between strokes. It has a simple yet durable construction with all internal parts lubricated at the factory using a life-tested synthetic grease (Balcrank® P/N 826733). This grease coats all internal parts and repels air line moisture to inhibit corrosion.The Panther® pumping assembly features a nitrided steel pump rod and foot valve for superior wear and corrosion resistance. The pump's exterior is constructed from aircraft grade extruded aluminum for an outstanding strength-to weight ratio. The pump also has high quality Buna-N seals and is packaged in a pump that has proven reliable yet easy to service and maintain.
| 16 Gal Non-Metered |
1131-064 |
| Bare Pump | 1130-016 |
| Fluid Hose MP (10' x 1/2") | 8249-010 |
| Suction Tube | 4412-044 |
| Control handle w/Flex-Memory& 1/4 | 3320-024 |
| F/R Mini Auto Drain 1/4" NPT(F) | 3260-033 |
| Air Coupler 1/4" | 3270-003 |
| Air Nipple 1/4" | 3270-004 |
| 16 Gal Metered |
1131-063 |
| Bare Pump | 1130-016 |
| Fluid Hose MP (10' x 1/2") | 8249-010 |
| Suction Tube | 4412-044 |
| Control handle w/Flex-Memory& 1/4 Turn | 3330-159 |
| F/R Mini Auto Drain 1/4" NPT(F) | 3260-033 |
| Air Coupler 1/4" | 3270-003 |
| Air Nipple 1/4" | 3270-004 |
| 55 Gal Non-Metered |
1131-066 |
| Bare Pump | 1130-016 |
| Fluid Hose MP (10' x 1/2") | 8249-010 |
| Suction Tube | 4412-046 |
| Control handle w/Flex-Memory& 1/4 Turn | 3320-024 |
| F/R Mini Auto Drain 1/4" NPT(F) | 3260-033 |
| Air Coupler 1/4" | 3270-003 |
| Air Nipple 1/4" | 3270-004 |
| 55 Gal Metered |
1131-065 |
| Bare Pump | 1130-016 |
| MP Fluid Hose (10' x 1/2") | 8249-010 |
| Suction Tube | 4412-046 |
| Control handle w/Flex-Memory& 1/4 Turn | 3330-159 |
| F/R Mini Auto Drain 1/4" NPT(F) | 3260-033 |
| Air Coupler 1/4" | 3270-003 |
| Air Nipple 1/4" | 3270-004 |
