SPR-12 Aluminum Self Piercing Rivet Gun - Combo Kit 36061

Product Description

Self-Piercing Rivet Gun SPR-12 Aluminum / ACL-36061 and Long Reach "C" Yoke comes with 24 Rivet dies and adapters Aluminum Self Piercing Rivet Gun Kit

Rivet Gun Designed Specifically for work on aluminum alloy vehicle bodies

• Adjustable Output Pressure. 4,400 to 11,200 Force pounds (20-50KN adjustable)
• Cordless 18V Technology is Safe and easy-to-handle
• High-quality lithium-ion battery to power the high-pressure hydraulic system and the control system.
• Efficient Light weight and portable.
• Micro-computer control system monitors pressure
• Automatically retracts the ram after the rivet installed.
• Adjustable Output Pressure.
• Manual reset button halts the forward movement
• Automatically retracts it to starting position.
• 360 degree rotating arms , for easy access the hard difficult spots.
• comes with 24 Rivet dies and adapters

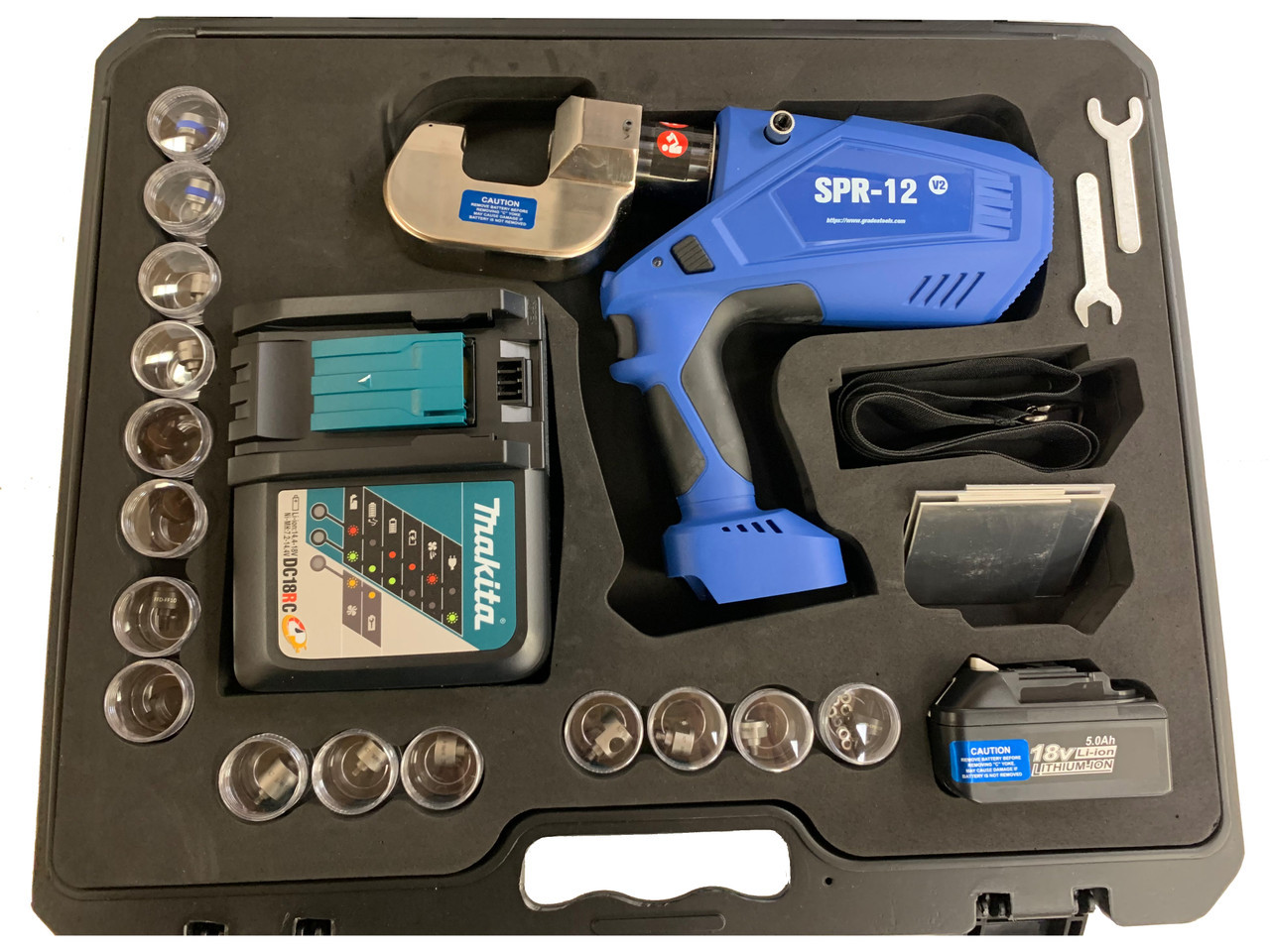

Kit Includes the Following Items:

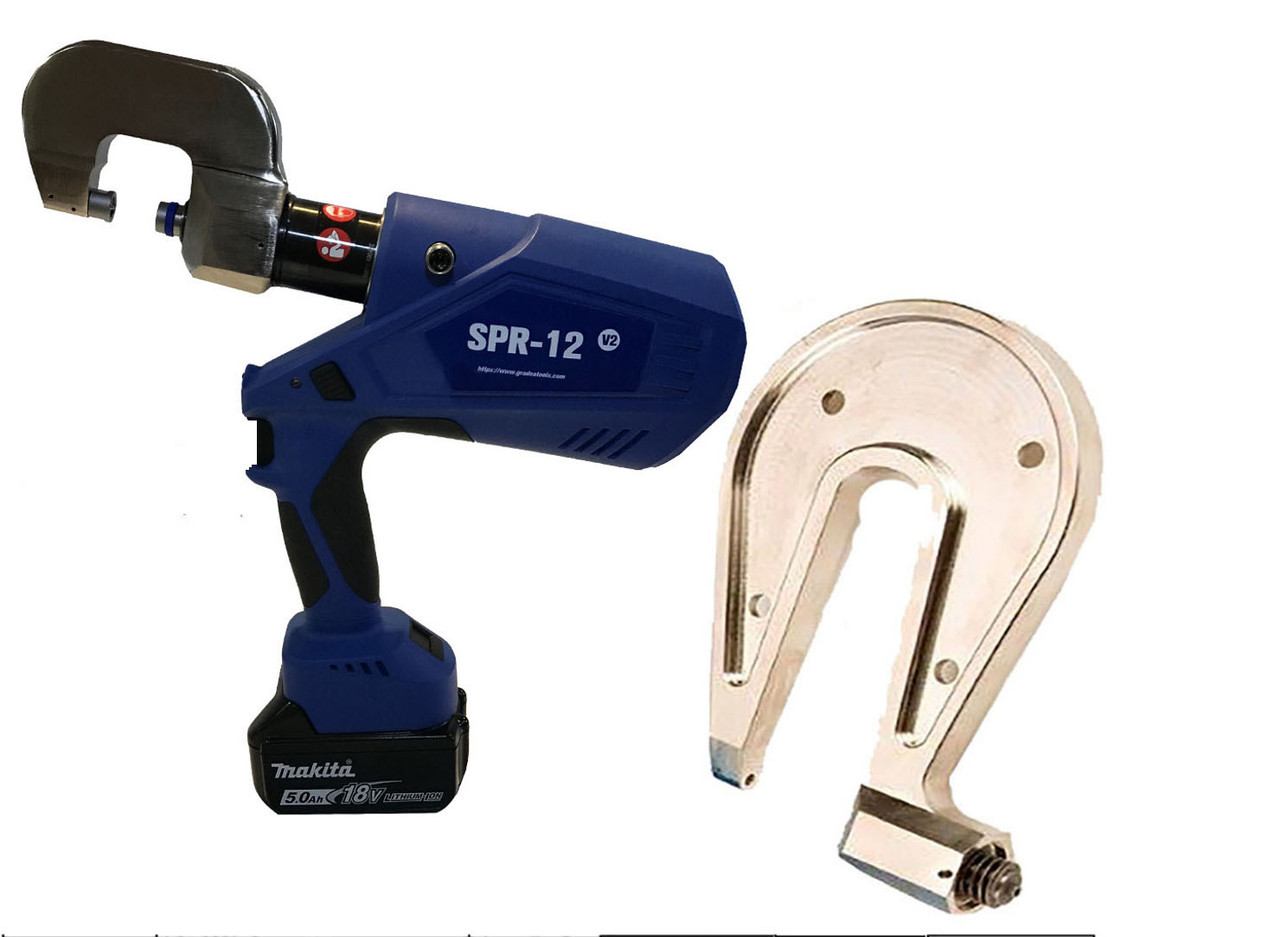

• "C" Yoke 1 1/2" (35 X 53 mm)
• Large "C" Yoke 8.5" (215 X 75 mm)
• Large C yoke includes 8 Rivet Dies
• Large C yoke Handle

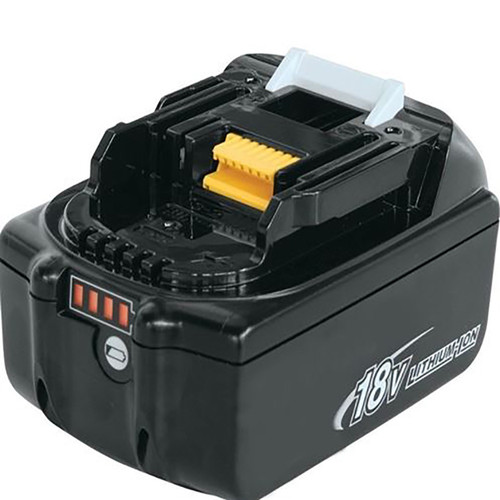

• Lithium-ion Battery (PRR-12)

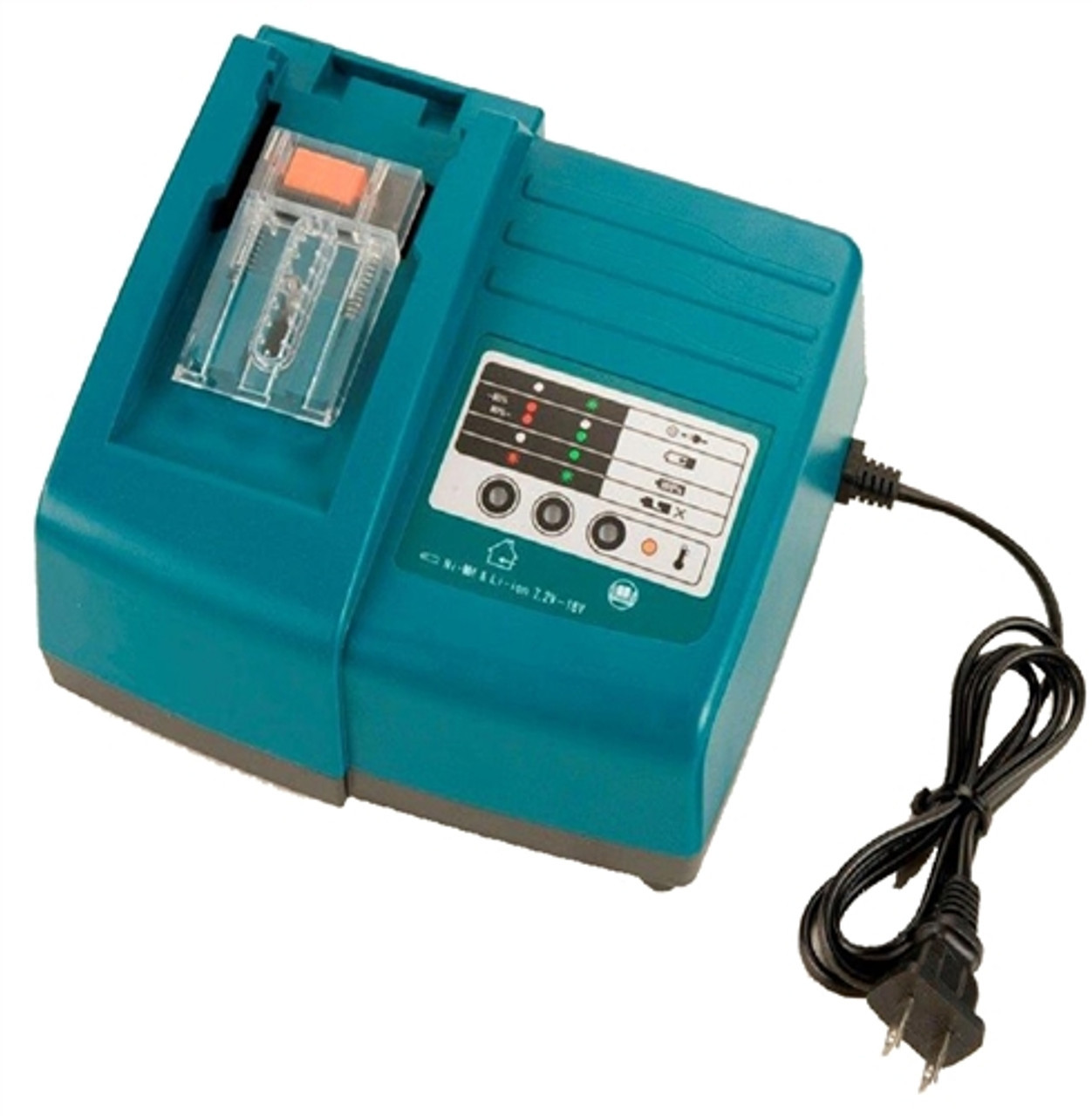

• 1 18V Battery Charger 110V wall plug (36-PRR-22)
• 1 Handy Strap
• 1 Heavy duty blow molded case
• 1 Case includes multiple rivet storage placement slots
• Gun Weight 10.8 lbs with battery and small "C" yoke
• One Year MFG Warranty

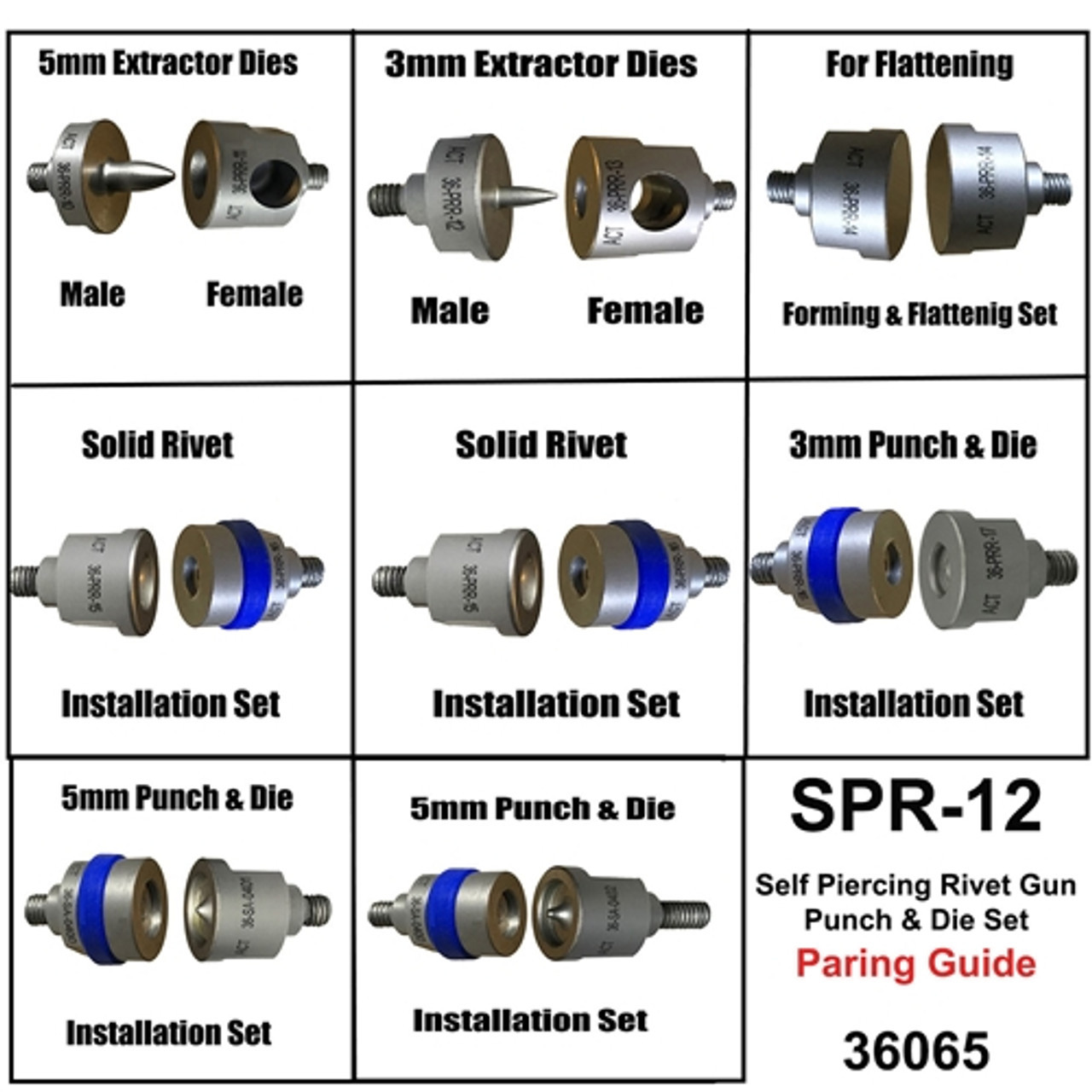

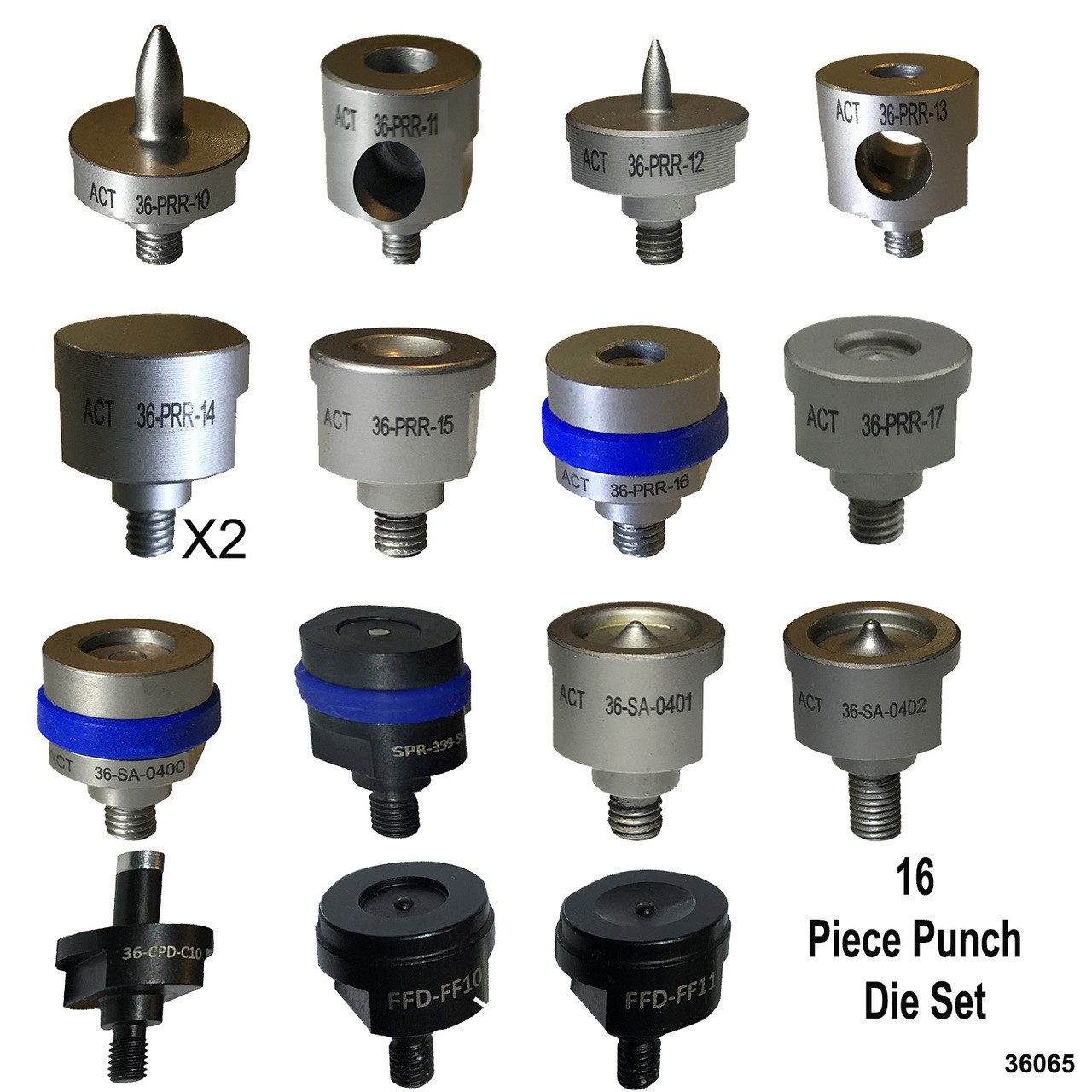

Total of 24 Punches and Dies as described below

• 36-PRR-10 - 5mm Male Rivet Removal Die
• 36-PRR-11 - 5mm Female Rivet Removal Die
• 36-PRR-12 - 3mm Male Rivet Removal Die
• 36-PRR-13 - 3mm Female Rivet Removal Die
• 36-PRR-14 - Flush Finish Self Piercing Rivet Die X2
• 36-PRR-15 - Solid Rivet Forming Die
• 36-PRR-16 - 3mm Self Piercing Rivet Die
• 36-PRR-17 - 3mm Rivet Forming Die
• 36-SA-0400 - 5mm , Self Piercing Rivet Die
• 36-SA-0401 - 5mm Forming Die
• 36-SA-0402 - 5mm Forming Die
• GAT-SPR-399-5MM - 5mm Punch Die for SPR-12, PR-5 & ESR800

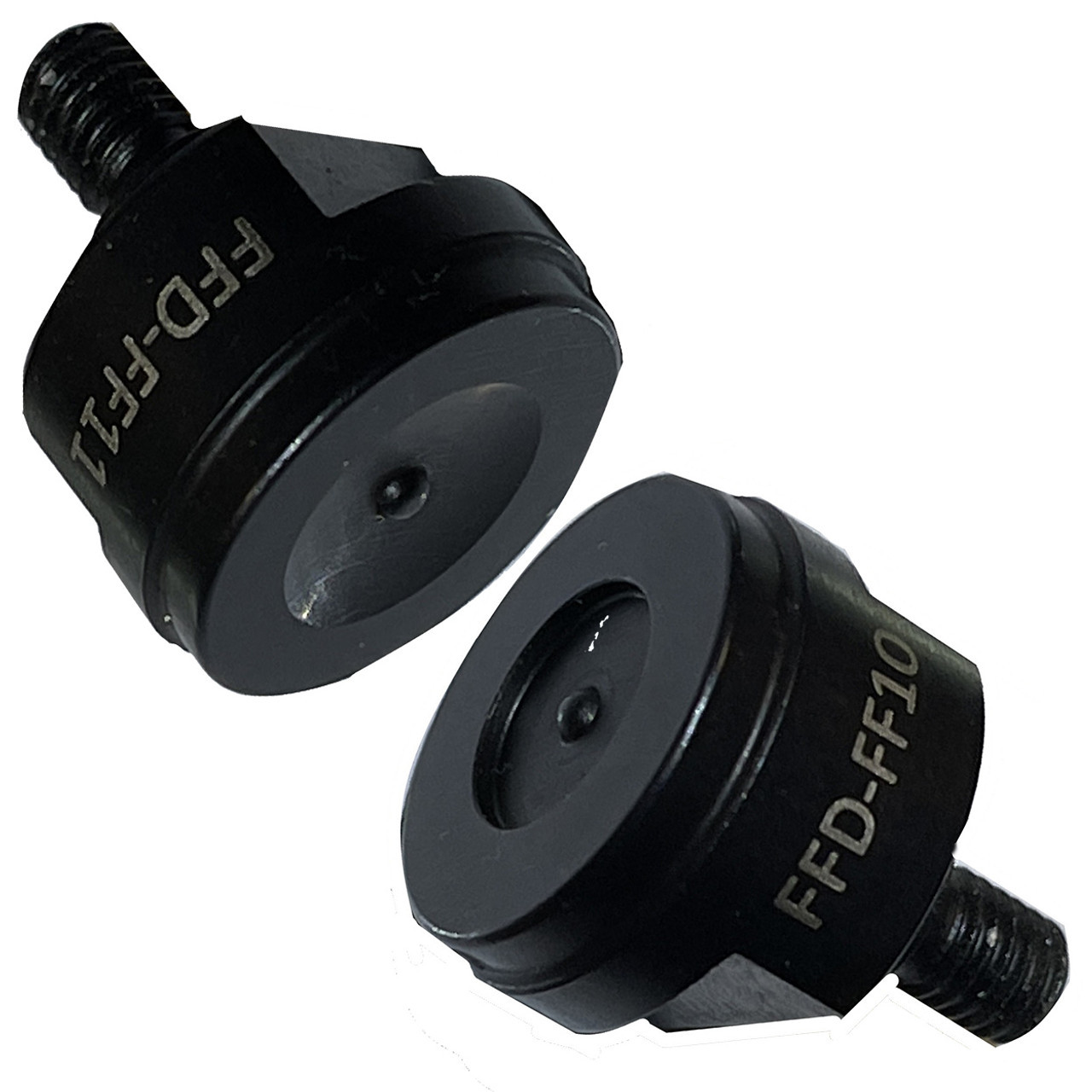

• GAT-FFD-FF10  - Head flow form side die
• GAT-FFD-FF11  - Forming side flow form die
• GAT-36CPD-C10  - Flow form punch calibration die ( Includes 10 punch rings)

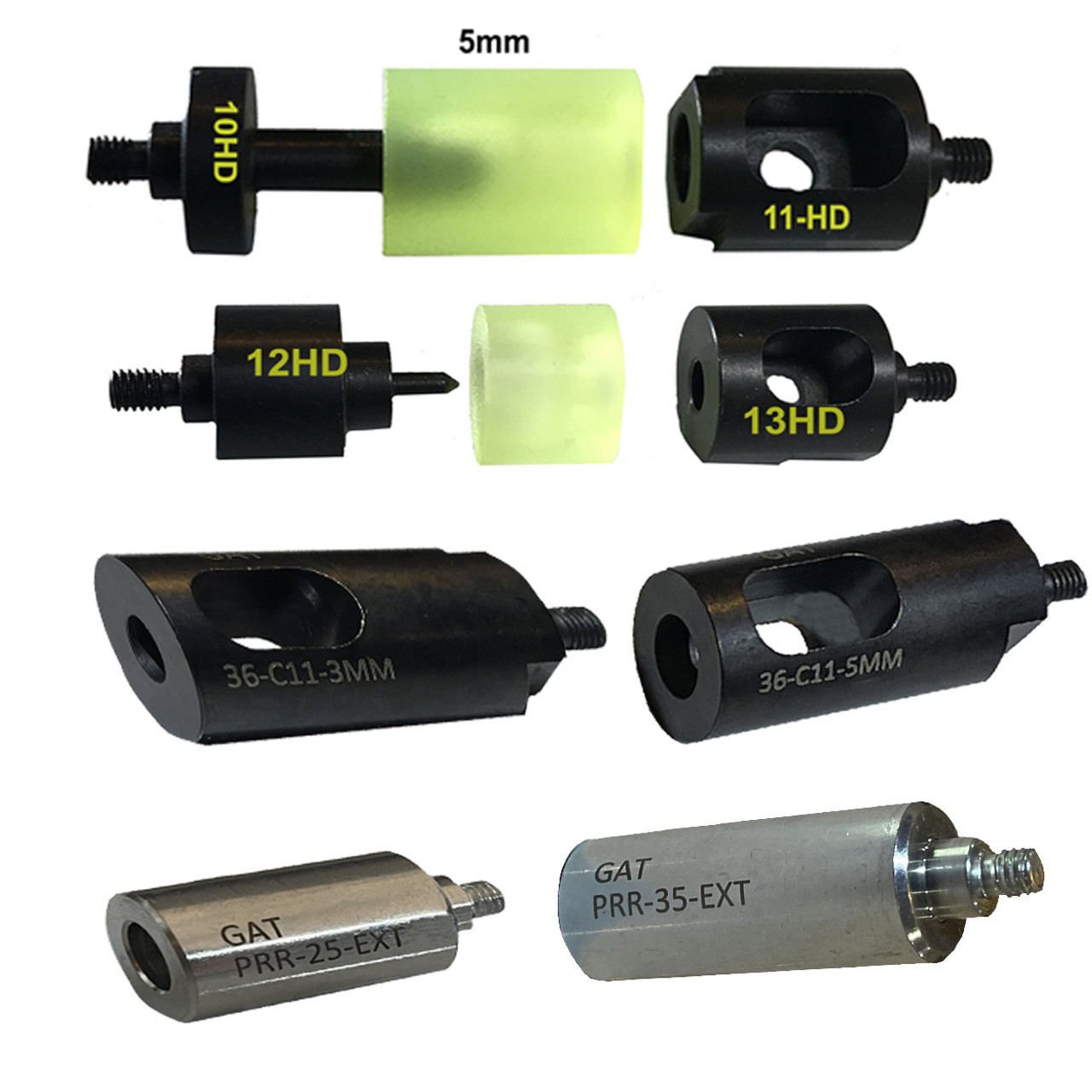

• GAT-PR5-10HD - 5mm Male removal die
• GAT-PR5-11HD - 5mm female removal die
• GAT-PR5-12HD - 3mm Male removal die
• GAT-PR5-13HD - 3mm female removal die
• GAT-PRR-35-EXT - die Extension
• GAT-PRR-25-EXT - die Extension
• GAT-36-C11-3mm -  Female Removal and flow form calibration die
• GAT-36-C11-5mm - Female Removal die

Rivets Sold Separately - see attached pictures for rivet sizes that will work with this rivet gun
to Repair FORD, GM, BMW, Jaguar etc,

• Works With Ford Rivet Part #'s
• Ford Rivet part # W708713-S900.....5.3 X 5.0
• Ford Rivet part # W708714-S900.....5.3 X 6.0
• Ford Rivet part # W712218-S900.....5.3 X 6.0
• Ford Rivet part # W710246-S900.....5.3 X 7.0
• Ford Rivet part # W717337-S900.....5.3 X 7.5
• Ford Rivet part # W708717-S900.....5.3 X 8.0
• Ford Rivet part # W717186-S900.....5.3 X 8.0
• Ford Rivet part # W717185-S900.....5.3 X 9.0
• Ford Rivet part # W717184-S900.....5.3 X 9.0
• Ford Rivet part # W717182-S900.....5.3 X 10.0
